AEM Fuel Pump 340 Kraftstoffpumpe
Art.Nr.: AEM-50-1000
Hersteller: AEM
139,00 EUR
incl. 19 % USt
Produktbeschreibung
AEM Fuel Pump 340 Lph / Lhr / Liter pro Stunde
Die AEM 50-1000 Kraftstoffpumpe zählt mit Ihren Leistungsdaten zu den stärksten Innentankpumpen und passt mit ihren kompakten Abmessungen in fast jeden Fahrzeugtank.
Technische Daten:
ca. 330 Liter/Stunde bei 3 Bar Benzindruck und 13.5V Spannung an der Kraftstoffpumpe
Fördermenge (Herstellerangabe): 340 Liter/Stunde @ 2.75 Bar (40psi) bei 13.5V
alle AEM Pumpen werden im Werk hinsichtlich der Durchflußmenge geprüft
integrierte Mitreiß-Düse verhindert ein Leersaugen des OEM Schlingertopf
Anschlüsse: 8mm Schlauchanschluß, 11mm Anschluß für Filtersieb
Abmessungen: 39mm Durchmesser, Gesamtlänge: 124mm
Gewicht: 354g
Lieferumfang:
1x Innentankpumpe AEM 50-1000
1x Universal-Einbaukit inkl. Montageanleitung (Englisch)
AEM's High Flow In-Tank Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It delivers reliable performance and high volumes of fuel flow for roughly half the cost of comparable performance fuel pumps.

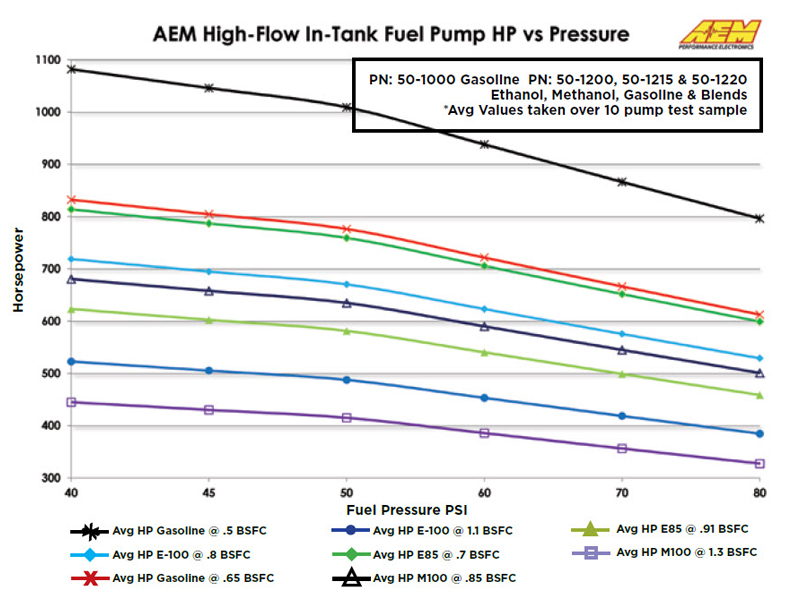

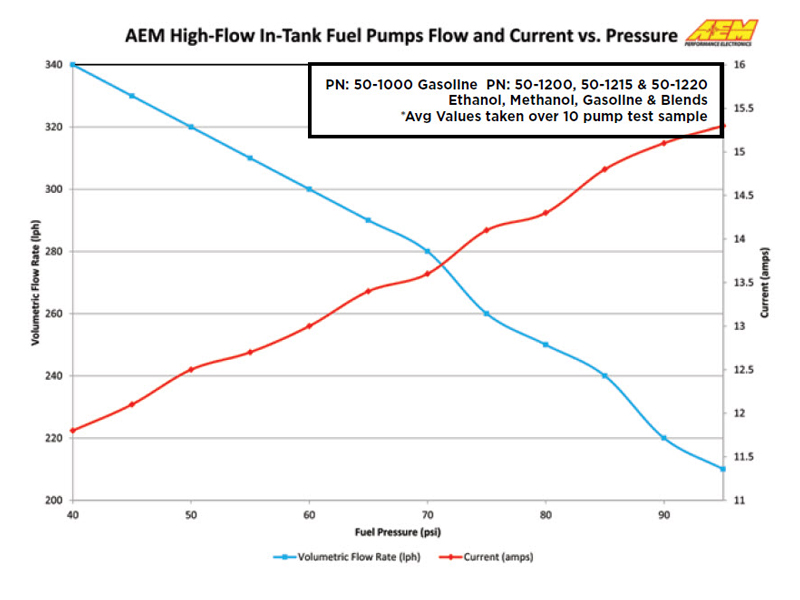

The AEM High Flow In-Tank Fuel Pump (PN 50-1000) flows 340 lph (84 gph) at 43 PSI and is capable of supporting over 1,000 HP at 43 PSI.* Click on the flow curves and current draw vs. fuel pressure graphs below for more information.
AEM High Flow In-Tank Fuel Pump Features:
- Designed for high output naturally aspirated and forced induction EFI vehicles
- In-Tank design
- Tested to flow 340 lph @ 43 PSI
- 39mm diameter fits most applications
- Offset inlet design eases installation
- Each pump individually tested
- For gasoline vehicles (pump life may be diminished when used with E85 fuel)

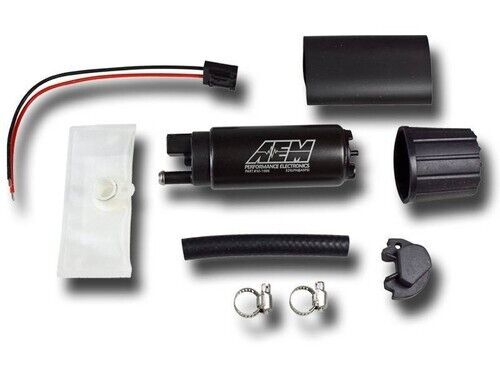

- Kit includes fuel pump, rubber sleeve and end caps, pre filter, hose, clamps and flying lead

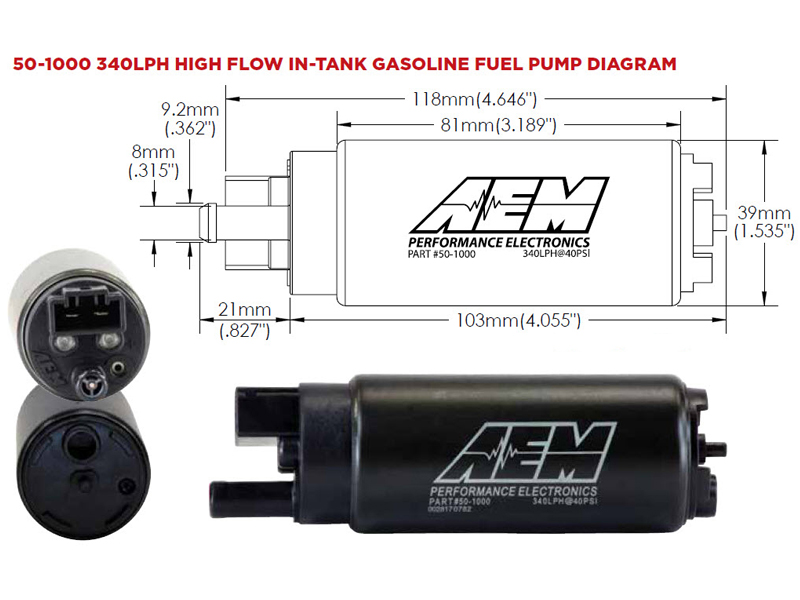

TECHNICAL SPECS:
- Weight: 10.1oz (285grams)
- Outside Diameter: 39mm OD
- External Materials: Black plated steel with laser etching
- Inlet Fitting: 7.7mm ID, 11.0mm OD
- Outlet Fitting: 8 mm hose clamp
- PRV Activation: 90 PSI
- Impeller Design: Single Scroll Hard Anodized Aluminum Turbine
VOLTAGE SPECS:
- Connector Terminal: 6 mm Spade (pos/neg)
- Min Voltage Input: 6 volts
- Max Voltage Input: 18 volts
- Current Draw (40 psi): 12 amps (13.5v)
- Current Draw (80 psi): 15 amps (13.5v)
* Power rating given at 43 PSI, 13.5v at the pump with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
Die AEM 50-1000 Kraftstoffpumpe zählt mit Ihren Leistungsdaten zu den stärksten Innentankpumpen und passt mit ihren kompakten Abmessungen in fast jeden Fahrzeugtank.
Technische Daten:
ca. 330 Liter/Stunde bei 3 Bar Benzindruck und 13.5V Spannung an der Kraftstoffpumpe
Fördermenge (Herstellerangabe): 340 Liter/Stunde @ 2.75 Bar (40psi) bei 13.5V
alle AEM Pumpen werden im Werk hinsichtlich der Durchflußmenge geprüft
integrierte Mitreiß-Düse verhindert ein Leersaugen des OEM Schlingertopf
Anschlüsse: 8mm Schlauchanschluß, 11mm Anschluß für Filtersieb
Abmessungen: 39mm Durchmesser, Gesamtlänge: 124mm
Gewicht: 354g
Lieferumfang:
1x Innentankpumpe AEM 50-1000
1x Universal-Einbaukit inkl. Montageanleitung (Englisch)
AEM's High Flow In-Tank Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It delivers reliable performance and high volumes of fuel flow for roughly half the cost of comparable performance fuel pumps.
The AEM High Flow In-Tank Fuel Pump (PN 50-1000) flows 340 lph (84 gph) at 43 PSI and is capable of supporting over 1,000 HP at 43 PSI.* Click on the flow curves and current draw vs. fuel pressure graphs below for more information.
AEM High Flow In-Tank Fuel Pump Features:
- Designed for high output naturally aspirated and forced induction EFI vehicles
- In-Tank design
- Tested to flow 340 lph @ 43 PSI
- 39mm diameter fits most applications
- Offset inlet design eases installation
- Each pump individually tested
- For gasoline vehicles (pump life may be diminished when used with E85 fuel)
- Kit includes fuel pump, rubber sleeve and end caps, pre filter, hose, clamps and flying lead
TECHNICAL SPECS:
- Weight: 10.1oz (285grams)
- Outside Diameter: 39mm OD
- External Materials: Black plated steel with laser etching
- Inlet Fitting: 7.7mm ID, 11.0mm OD
- Outlet Fitting: 8 mm hose clamp
- PRV Activation: 90 PSI
- Impeller Design: Single Scroll Hard Anodized Aluminum Turbine
VOLTAGE SPECS:
- Connector Terminal: 6 mm Spade (pos/neg)
- Min Voltage Input: 6 volts
- Max Voltage Input: 18 volts
- Current Draw (40 psi): 12 amps (13.5v)
- Current Draw (80 psi): 15 amps (13.5v)
* Power rating given at 43 PSI, 13.5v at the pump with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
