CORKSPORT 72mm Throttle Body Spacer Mazda MPS
Art.Nr.: GEN-6-498-10
Hersteller: CORKSPORT
139,00 EUR
incl. 19 % USt
- Lieferzeit 4 Wochen
-
4 Wochen
Produktbeschreibung
CORKSPORT 72mm Throttle Body Spacer Mazda MPS
- Aluminium Distanzplatte für die Drosselklappe mit Anschlussmöglichkeit (3-fach) für Wassereinspritzung etc.

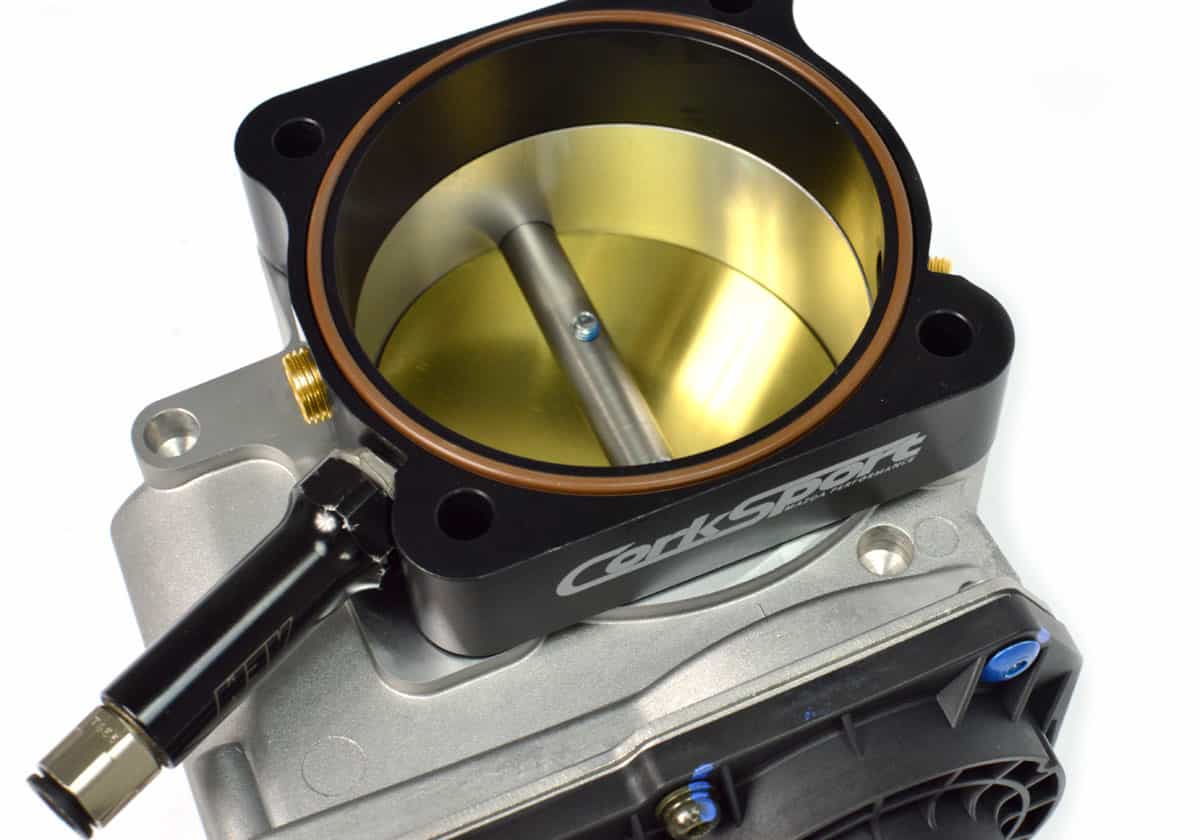

The CS 72mm Throttle Body Spacer is perfect for those wanting to add methanol injection for cooler boost temps and some extra fuel.

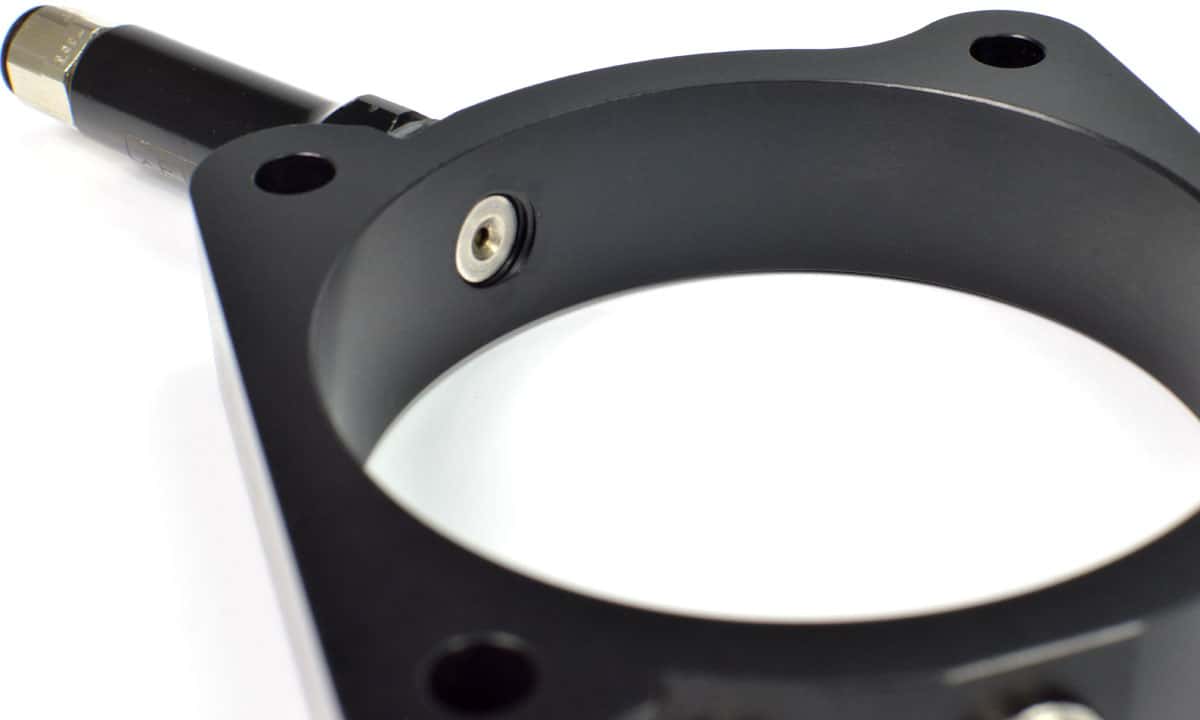

Features include three ports that can all be easily used with a variety of nozzles, intake manifolds, and throttle bodies, a clean black anodized finish and an O-ring for easy sealing. Read on for more details and specs.
The CorkSport 72mm Throttle Body Spacer was designed to be as easy to use as possible. Atypical methanol port locations were chosen in order to maximize accessibility. Even though this means less total ports, each port can be used at all times, even with an OEM intake manifold. This also gave the CS throttle body spacer a lot of versatility to work with most methanol nozzles on the market.
The 72mm Throttle Body Spacer is designed for use with both Top Mount and Front Mount Intercooler setups. This allows you to get the extra fuel and/or boost air cooling you are looking for without requiring the use of an FMIC. Only a small modification to the silicone coupler is required. (Installed Throttle Body Spacer is shown on a Mazdaspeed 6)

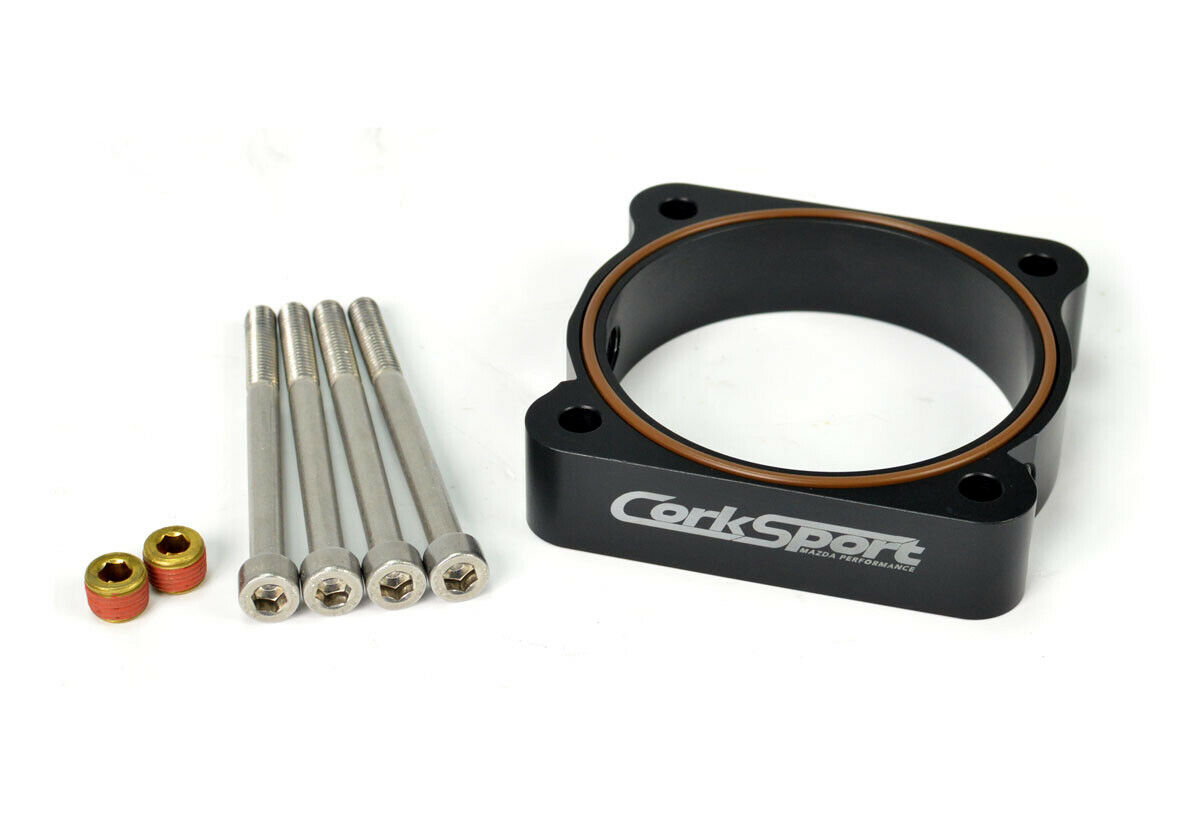

The spacer utilizes an O-ring for sealing against the intake manifold for a worry-free installation. The throttle body side of the spacer can be installed with either the OE gasket and OE throttle body or the CorkSport Throttle Body which also utilizes an O-ring for sealing.
Like the CorkSport Performance Throttle Body, the inside diameter of the throttle body spacer was chosen to be 72mm to maximize the size that would work with the OEM throttle body bolt pattern. This allows for the most peak airflow possible. In addition, this makes the CS throttle body spacer a perfect fit for most upgraded aftermarket intake manifolds as well as the CS Throttle Body upgrade.
Advisory:
The CorkSport Throttle Body Spacer has not been test fitted with every intake manifold & intercooler piping option on the market. Fitment may vary.
Front mount cold pipe/silicone modification may be required for fitment.
Early Mazdaspeed 6 with TMIC & cast cold pipe elbow cannot be used. Sourcing and use of later version MS6/MS3 cold pipe is required for installation.
The use of a new OE throttle body gasket is recommending is using an OE throttle body.
- Aluminium Distanzplatte für die Drosselklappe mit Anschlussmöglichkeit (3-fach) für Wassereinspritzung etc.
The CS 72mm Throttle Body Spacer is perfect for those wanting to add methanol injection for cooler boost temps and some extra fuel.
Features include three ports that can all be easily used with a variety of nozzles, intake manifolds, and throttle bodies, a clean black anodized finish and an O-ring for easy sealing. Read on for more details and specs.
The CorkSport 72mm Throttle Body Spacer was designed to be as easy to use as possible. Atypical methanol port locations were chosen in order to maximize accessibility. Even though this means less total ports, each port can be used at all times, even with an OEM intake manifold. This also gave the CS throttle body spacer a lot of versatility to work with most methanol nozzles on the market.
The 72mm Throttle Body Spacer is designed for use with both Top Mount and Front Mount Intercooler setups. This allows you to get the extra fuel and/or boost air cooling you are looking for without requiring the use of an FMIC. Only a small modification to the silicone coupler is required. (Installed Throttle Body Spacer is shown on a Mazdaspeed 6)
The spacer utilizes an O-ring for sealing against the intake manifold for a worry-free installation. The throttle body side of the spacer can be installed with either the OE gasket and OE throttle body or the CorkSport Throttle Body which also utilizes an O-ring for sealing.
Like the CorkSport Performance Throttle Body, the inside diameter of the throttle body spacer was chosen to be 72mm to maximize the size that would work with the OEM throttle body bolt pattern. This allows for the most peak airflow possible. In addition, this makes the CS throttle body spacer a perfect fit for most upgraded aftermarket intake manifolds as well as the CS Throttle Body upgrade.
Advisory:
The CorkSport Throttle Body Spacer has not been test fitted with every intake manifold & intercooler piping option on the market. Fitment may vary.
Front mount cold pipe/silicone modification may be required for fitment.
Early Mazdaspeed 6 with TMIC & cast cold pipe elbow cannot be used. Sourcing and use of later version MS6/MS3 cold pipe is required for installation.
The use of a new OE throttle body gasket is recommending is using an OE throttle body.
