Produktbeschreibung
TODA Racing Schmiedekolben für Honda Civic Type-R EP3 Motor K20A
4 Kolben inkl. Zubehör, Bolzen etc. für Renn- & Rallye Fahrzeuge
ø86.00×86.0mm
1998cc
Standard head GK t=0.6mm ≈ 12.1:1

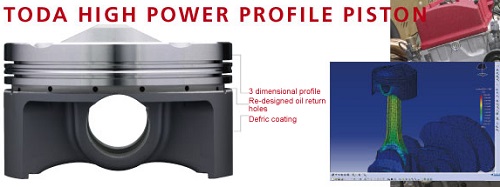

Defric coating (Lubricous film) is applied to the piston skirt, for a reduction in friction and loads as well as improved durability.
High Compression Forged Piston Kit 86.00 - K20A
SPECIFICATIONS:

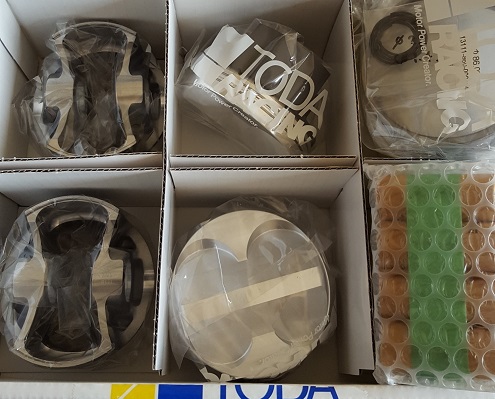

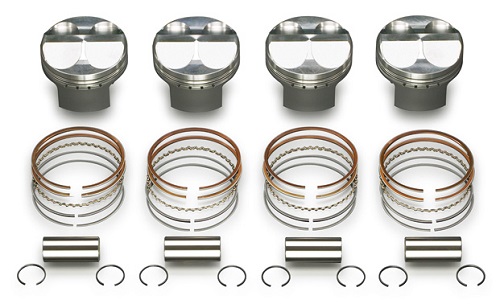

Kit contents:
- 4x Forged Pistons
- Rings
- Pins
- Clips
86.00:
Bore: 86.00mm
Displacement: 1998cc
Crown Volume (*1): 8.9cc/8.9cc
Projection Height (*2): 0.0mm
Reference C/R (*3): OEM head GK 0.6mm 12.1:1
PRODUCT NOTES:
- *1: Crown volume is measured from the piston shoulder/from the deck of the block.
- *2: Piston shoulder height is measured from the deck of the block.
- *3: The compression ratio given above are only to be taken as a guide, measurements are required.
COMPATIBILITY NOTES:
- For 86mm OEM stroke.
- Only for CIVIC TypeR, INTEGRA TypeR, ACCORD EuroR
- Optional Head Gasket is required, Toda recommends Toda 87.2mm Head Gasket (Part Num 12251-K20-006).
