MISHIMOTO Ölkühler Kit Honda Civic Type R FK8 2017-
Art.Nr.: MMOC-CTR-17T
Hersteller: MISHIMOTO
719,00 EUR
incl. 19 % USt
- Lieferzeit 2 Wochen
-
2 Wochen
Produktbeschreibung
Reduziert die Öltemperatur um 8 ° C
Minimaler Druckabfall

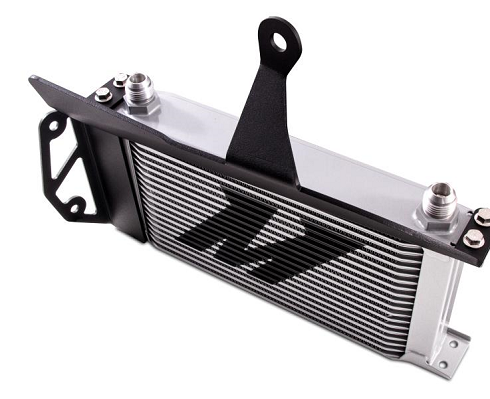

spezifische Halterungen zur Aufrechterhaltung des Luftstroms zum Radkasten

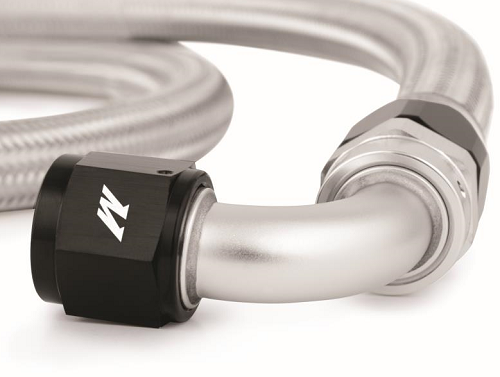

Direkt montierte geflochtene Ölleitungen aus Edelstahl mit langlebigen AN-Fittings
19-reihiger Plattenölkühler zur optimalen Reduzierung der Flüssigkeitstemperatur

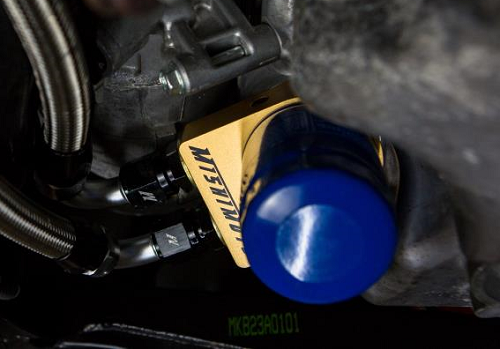

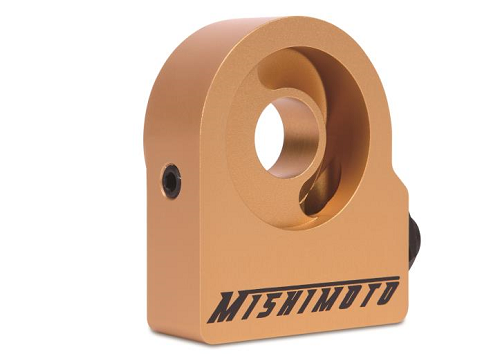

Billet Aluminium Thermoöl Sandwichplatte
Erhöht die Ölkapazität um 0,6 l
Behält die Verwendung der serienmäßigen Ölkühlereinheit bei
Lebenslange Garantie von Mishimoto

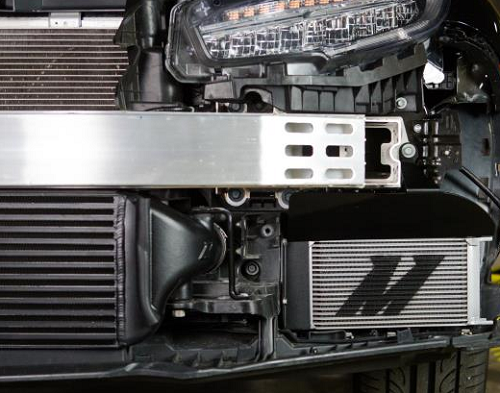

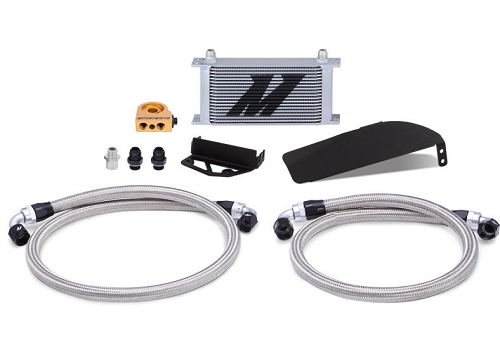

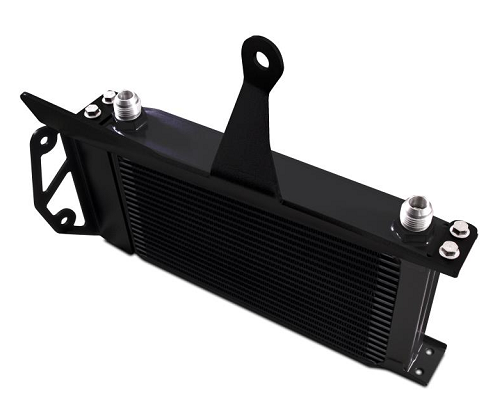

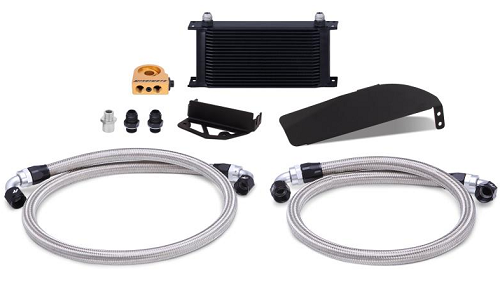

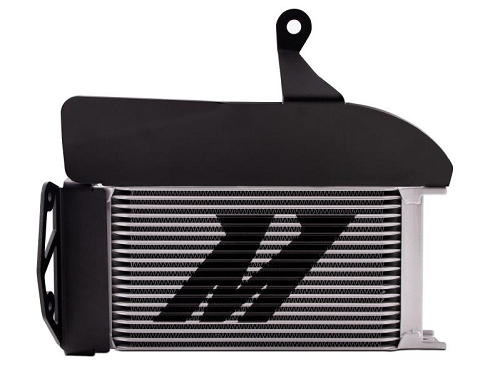

The Mishimoto Direct-Fit Oil Cooler Kit gives the stock system a hand by adding a 19-row air-to-air cooler into the system, which utilizes the FK8’s sculpted and aero-centric front bumper to drop oil temperatures by 8°C. This cooler is held in place by a pair of application-specific brackets, designed to keep proper airflow through the front wheel well. Your Civic’s oil is securely transported to and from the cooler by way of sturdy stainless steel braided lines featuring durable -AN fittings. The 2017+ Honda Civic Type R Oil Cooler Kit is engineered as a thermostatic kit to eliminate the potential of overcooling, and with the option of a silver or black cooler. As with all of our products, this kit also includes the Mishimoto Lifetime Warranty for a worry-free installation.
Core Height 138 mm
Rows 19
Note: This oil cooler kit retains the use of your stock liquid-to-liquid oil cooler unit
Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft-lbs (operating range). Do not exceed the maximum torque rating of 35 ft-lbs.
Core Thickness 50 mm
Core Length 279.4 mm
Engine Codes K20C1
Chassis Codes FK8
Pressure Drop 3-5 psi
Install Torque Specs
Recommended torque specification for all straight fittings and banjo bolts: 15-25 ft-lbs (operating range). Do not exceed the maximum torque rating of 35 ft-lbs.
