Produktbeschreibung

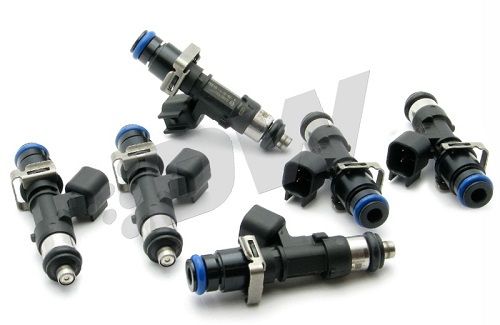

DEATSCHWERKS 1000cc Einspritzdüsen Set für Toyota Supra TwinTurbo 93-98
- Einspritzdüsen Set (6 Stück)
Set of 6 high impedance 1000cc injectors for Toyota Supra TT 93-98. For top feed conversion - 14mm o-ring.
- Intended for top feed conversion only
- Accommodations will need to be made to run high impedance injectors
- Available in 14mm and 11mm to work with most aftermarket fuel rails
- Electrical connectors included
All DeatschWerks injectors feature the following:
- E85 compatibility
- Flow rates and set balancing in-house by DeatschWerks
- Flow balanced to within 1-2% (flow report included)
- Excellent spray pattern and atomization for optimized idle and tuning
- Technical assistance and tuning data available via phone or email
- 3-year comprehensive warranty
matched set of 6 injectors 10000cc/min (high impedance)
| Fuel Pressure Range | 40-80 psi |
| Minimum Pulse Width | 1.0 ms |
| Maximum Duty Cycle | 93% |
| Coil Impedance | 12.4 ohm |
| Injector Type | Bosch EV14 (standard) |
| Connector Type | us-car |
Nominal Static Flow Rate
| PSI > | 43 | 58 | 70 | 80 | 90 | 100 |
| cc/min | 946 | 1119 | 1263 | 1370 | 1450 | 1527 |
| lb/hr | 90.1 | 106.6 | 120.3 | 130.5 | 138.1 | 145.4 |
Please note: Flow rates listed are the nominal (normal minimum) rates for this injector part number. All sets are flow balanced. For actual flow rates of your set, please refer to the flow report that will accompany your order.
Offset In Milliseconds (Pressure Vs Voltage)
| PSI > VOLTS v |
43 | 58 | 70 | 80 | 90 | 100 |
| 8 | 2.45 | 2.87 | 3.30 | 8.00 | 8.00 | 8.00 |
| 9 | 1.97 | 2.21 | 2.38 | 2.81 | 3.11 | 8.00 |
| 10 | 1.68 | 1.88 | 1.93 | 2.21 | 2.26 | 2.47 |
| 11 | 1.41 | 1.61 | 1.65 | 1.85 | 1.85 | 1.91 |
| 12 | 1.20 | 1.37 | 1.44 | 1.61 | 1.57 | 1.58 |
| 13 | 1.06 | 1.22 | 1.23 | 1.40 | 1.37 | 1.37 |
| 14 | 0.93 | 1.08 | 1.06 | 1.21 | 1.19 | 1.17 |
| 15 | 0.82 | 0.96 | 0.92 | 1.07 | 1.02 | 1.01 |
| 16 | 0.73 | 0.88 | 0.77 | 0.94 | 0.89 | 0.86 |
